Today, Buderus already records the quantities of heat and the energy consumption and efficiency display required as part of the BEG individual measures from 2023, enabling
customers to monitor and optimise their consumption. Buderus is therefore BEG ready.

Overview: Product.
New system control unit: Logamatic BC400
- standardised: Replaces the Logamatic HMC310 for heat pumps and the Logamatic RC310 for fossil fuel heat generators
- 5" colour touch screen
- particularly intuitive thanks to touch control, graphic system views, shorter/expanded expert view
- for fossil fuel heat generators: Boiler display and system control unit in one device
- BEG ready: Built-in energy consumption and efficiency display ex works
Buderus is BEG ready:

Overview: Accessories.
New accessories.
- connectivity with Logamatic MX300 via Wi‑Fi
- Logamatic RC100 remote control
- Logamatic RC120 RF radio remote control
- Logamatic RC220 remote control system
- MyBuderus app for flexible control of the heating or air conditioning system
- Buderus ConnectPRO web portal that allows the installer to monitor the system
- SRC plus single room control system integrated into the control system

Overview: Individual room control.

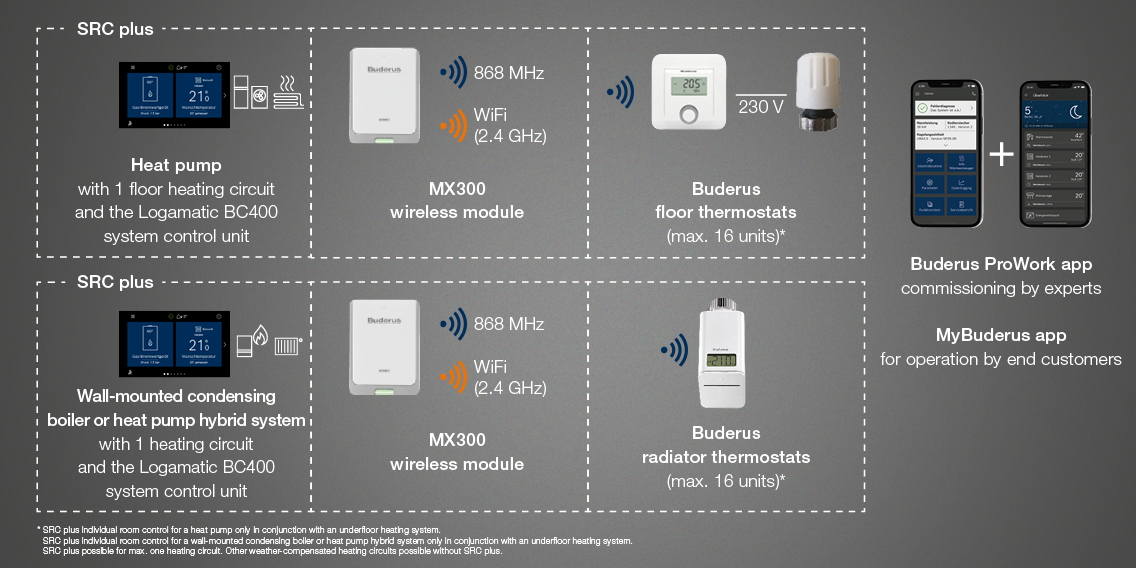

Efficient connection: SRC plus single room control system
In conjunction with the Logamatic BC400 system control unit (EMS plus control system), the SRC plus single room control refines the interaction between the heat generator and the heat distribution. It is therefore an effective and inexpensive way of saving energy while ensuring complete comfort.



Overview: Individual room control.
Efficient connection: SRC plus single room control system

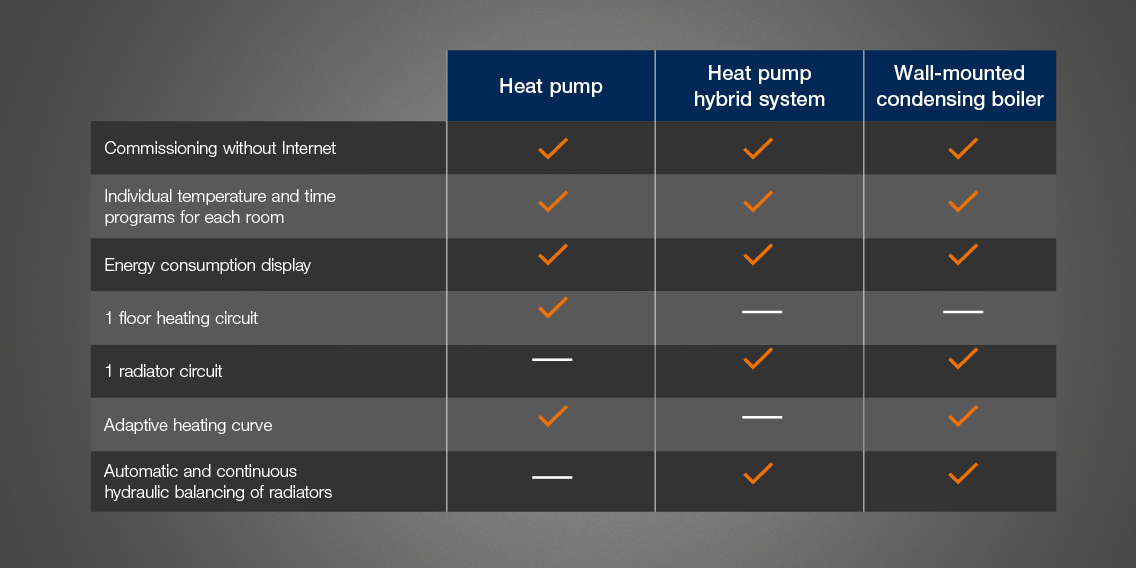

- suitable for heat pumps with an underfloor heating system or wall-mounted condensing boilers with radiator heating
- adaptive heating curve reduces operating temperatures while maintaining the same heating capacity (e.g. up to 25% energy savings possible for a heat pump with an underfloor heating system*)
- commissioning with ProWork app, without an Internet connection
- operation via MyBuderus app

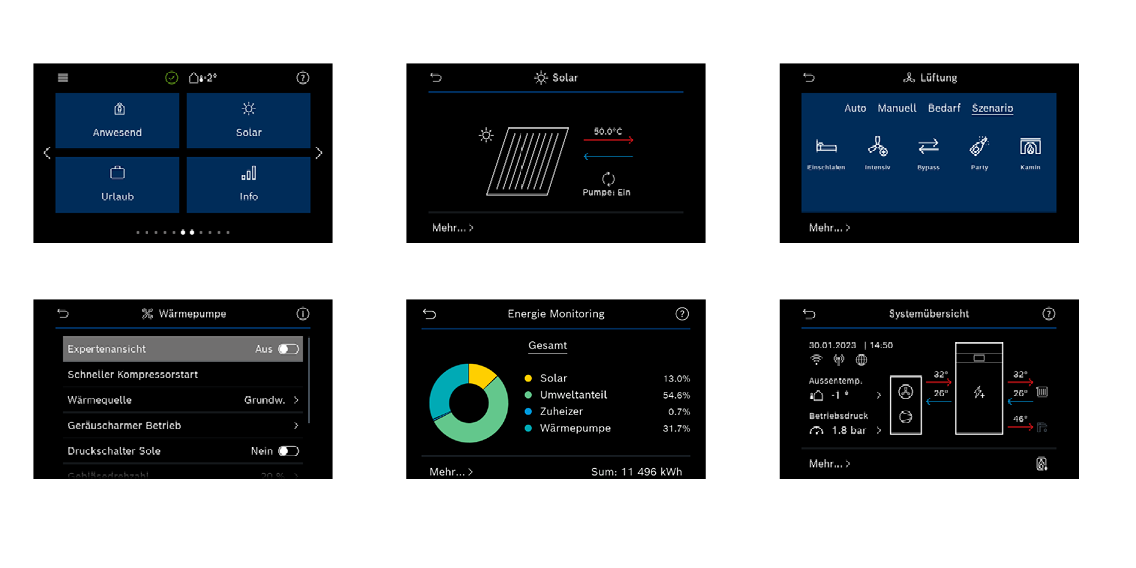

Details: Operating concept.
Intuitive and sophisticated: The operating concept.
- operation via touch and swiping
- navigation in tile system, divided into heat generator, heating circuits, domestic hot water, solar, ventilation. Quick information via main screen, expanded options via “More…” button
- many tried-and-tested control elements adopted from Logamatic RC310 / HMC310

Details: Design.
State of the art.
- 5" colour touch screen
- integrated in the glass design of the heat generator front
- direct operation access on the appliance, no drawer, no flap

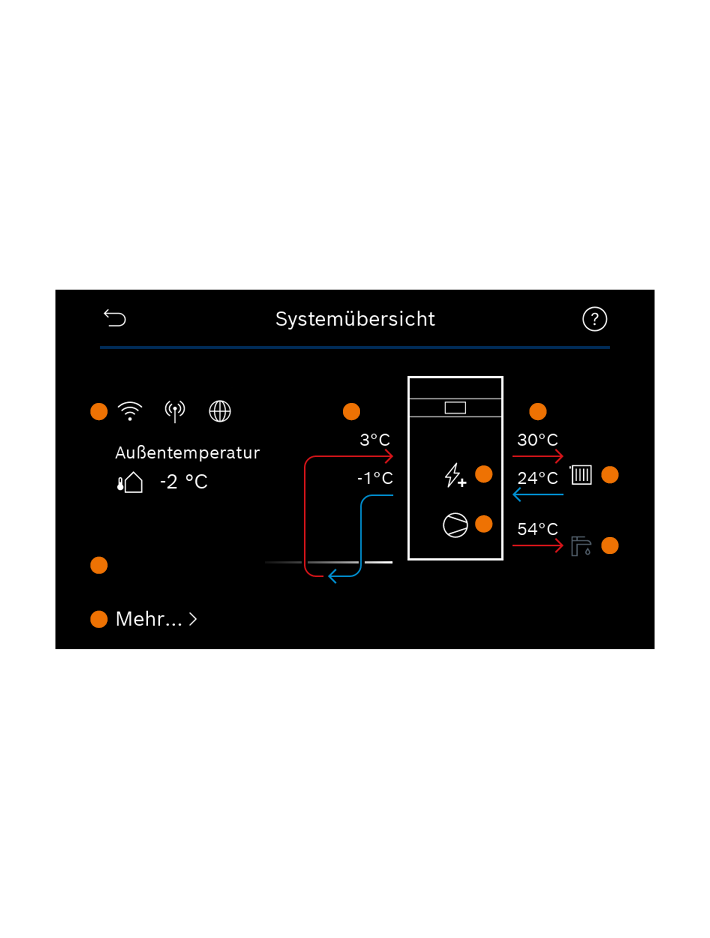

Connectivity status:
- Wi-Fi
- RF connection (radio remote control or individual room control)
- Server connection (MX300)
System pressure:
Reserved for displaying the water pressure.
More:
Advanced settings including status information (monitoring data).
Temperature:
Flow and return temperature (brine in this example).
Compressor:
Information about compressor operation via this symbol
- White – active
- Grey – inactive
Auxiliary heater:
- White – active
- Grey – inactive
Operating temperatures:
Displays the flow and return temperature of the heating circuit.
Display of current operating mode:
- White radiator icon – heating mode
- White snowflake icon – cooling mode
- White swimming pool icon – pool heating mode
- Grey – inactive
Domestic hot water temperature:
Displays the measured domestic hot water temperature. If the water tap is greyed out, the heat pump is not currently preparing more domestic hot water.
Details: Layout.
Everything at a glance.
The new design provides an even faster overview of all important heating system parameters. Colour markings and corresponding icons also improve handling.

Details: Modular design.
Highly versatile.
- the Logamatic BC400 is compatible with all familiar EMS plus function modules.


Connectivity: MX300 wireless module
MX300 wireless module
- MX300 slot accessible from outside the appliance
- Wi-Fi communication (2.4 GHz) and radio remote control (868 MHz)
Connectivity: Logamatic RF120 RF
Logamatic RF120 RF radio remote control
- sets a permanent or temporary target temperature until the next switching point
- includes humidity display, can be used for passive cooling
- wall mounting or table installation
Connectivity: Logamatic RC220
The remote control for the whole system.
- with two-wire connection
- can control up to two heating circuits
- includes operation of domestic hot water, ventilation, solar data and information on energy consumption
- TFT colour display


Connectivity: Buderus apps.

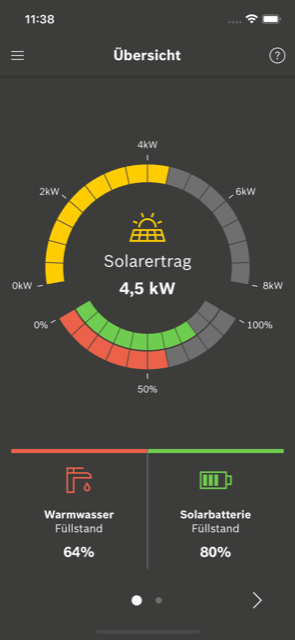

MyEnergyMaster app
- more independence with up to 70% self-generated supply
- efficient connectivity of photovoltaics, heat pump, wall box and household appliances
- compatible with any photovoltaic system
- optimal overview of the energy draw
Connectivity: Buderus apps.
MyBuderus app
- app for flexible control of the heating and ventilation system
- the most important parameters at a glance
- graphic illustration of energy consumption
- indicates the current state of the wall box

Connectivity: ConnectPRO web portal
ConnectPRO web portal
- direct connectivity with keys with the customer system
- fast fault detection and rectification
- forward-looking scheduling and workforce planning
- DIAGNOSTIC plus function for analysing the system behaviour


Service.
24/7 customer service.
- support with commissioning, maintenance, repairs, water analysis and efficiency service
- over 300 service engineers across Germany at your service every day
- over 220 service products: Can be combined and are available across Germany
Service.
Smart Service Key
- service tool with the ProWork app for mobile use for heat generators with the Logamatic EMS plus control system
- Wi-Fi connection between the service tool and smartphone
- support during on-site service deployments
