Overview

System

Layout

Application

Product

Operator advantages

Tenant advantages

Overview: product.

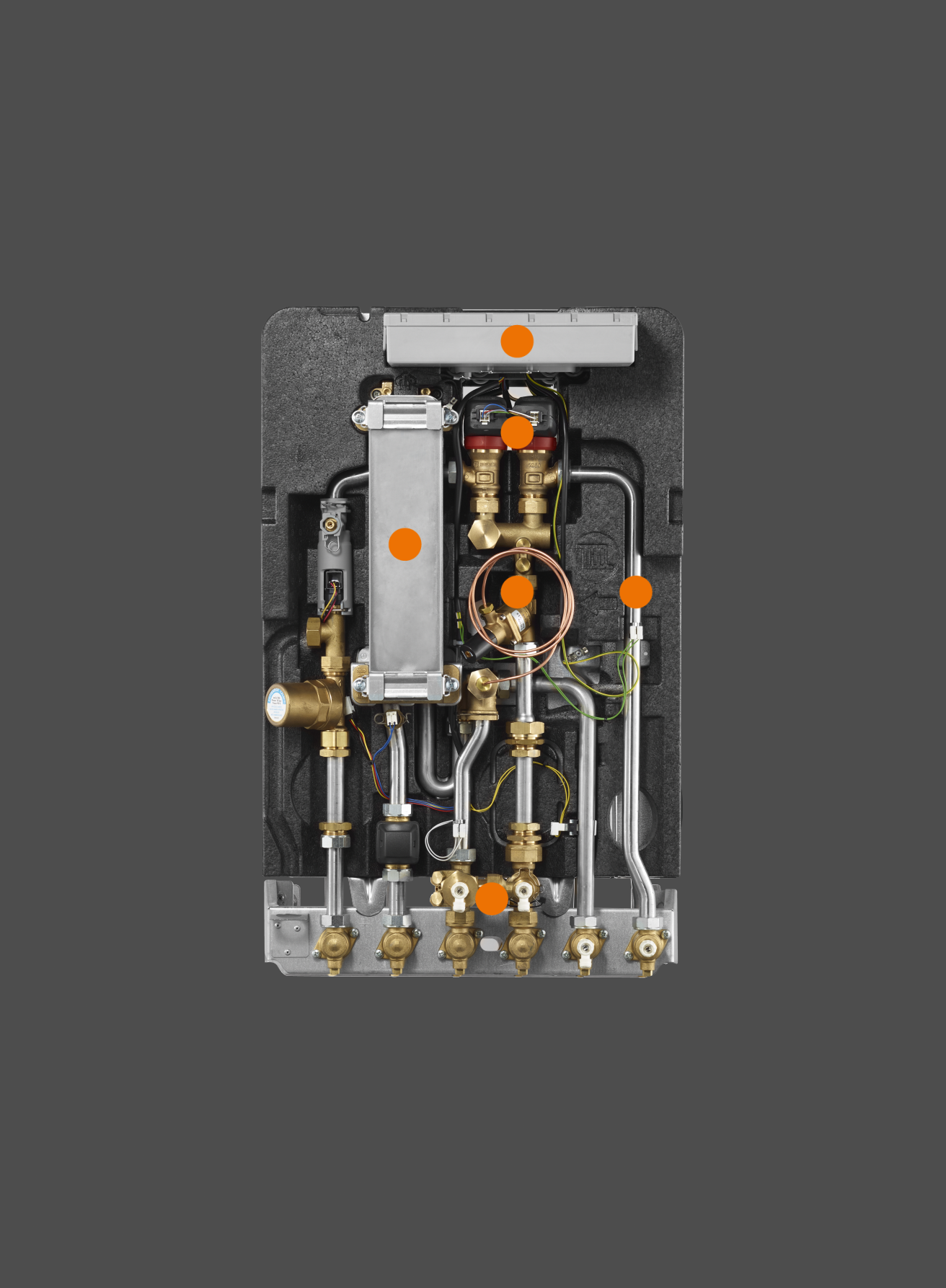

The Logamax kompakt WS170 floor station

elegant solution for finished walls in the Buderus Titanium design
as standard with stainless steel brazed plate heat exchanger and differential pressure valve
highest hot water output up to 50 kW, increased
operating convenience thanks to Logamatic EMS plus control system and increased efficiency through return temperature monitoring

plate heat exchanger

The plate heat exchanger, integrated as standard in the fully insulated station, is stainless steel brazed and therefore suitable for all regions.
differential pressure valve

A differential pressure regulator is integrated in all versions for the hydraulic balancing of the primary circuit.

Overview: operator benefits.

Low operating costs through centralized heat generation.

A heat generator and buffer storage tank sited at a central location provide hot water for the heating circuit and domestic hot water for the entire building. The decentralized domestic hot water heating via the floor stations complies directly with the drinking water regulations. Integrated cold water and heat meters ensure precise consumption data for convenient operating cost billing. With Buderus, you have everything from one source – and little installation effort is required with only three lots of pipework to run for each line.

Overview: tenant benefits.

Increased domestic hot water convenience through decentralized heat transfer.

Each tenant can adjust the heat and domestic hot water to suit their own requirements at the floor station control unit. In doing so, the tenant benefits from increased domestic hot water convenience and high potable water hygiene. The meters in the floor station measure the energy used for domestic hot water and heating.

Introduction

Hydraulics

Accessories

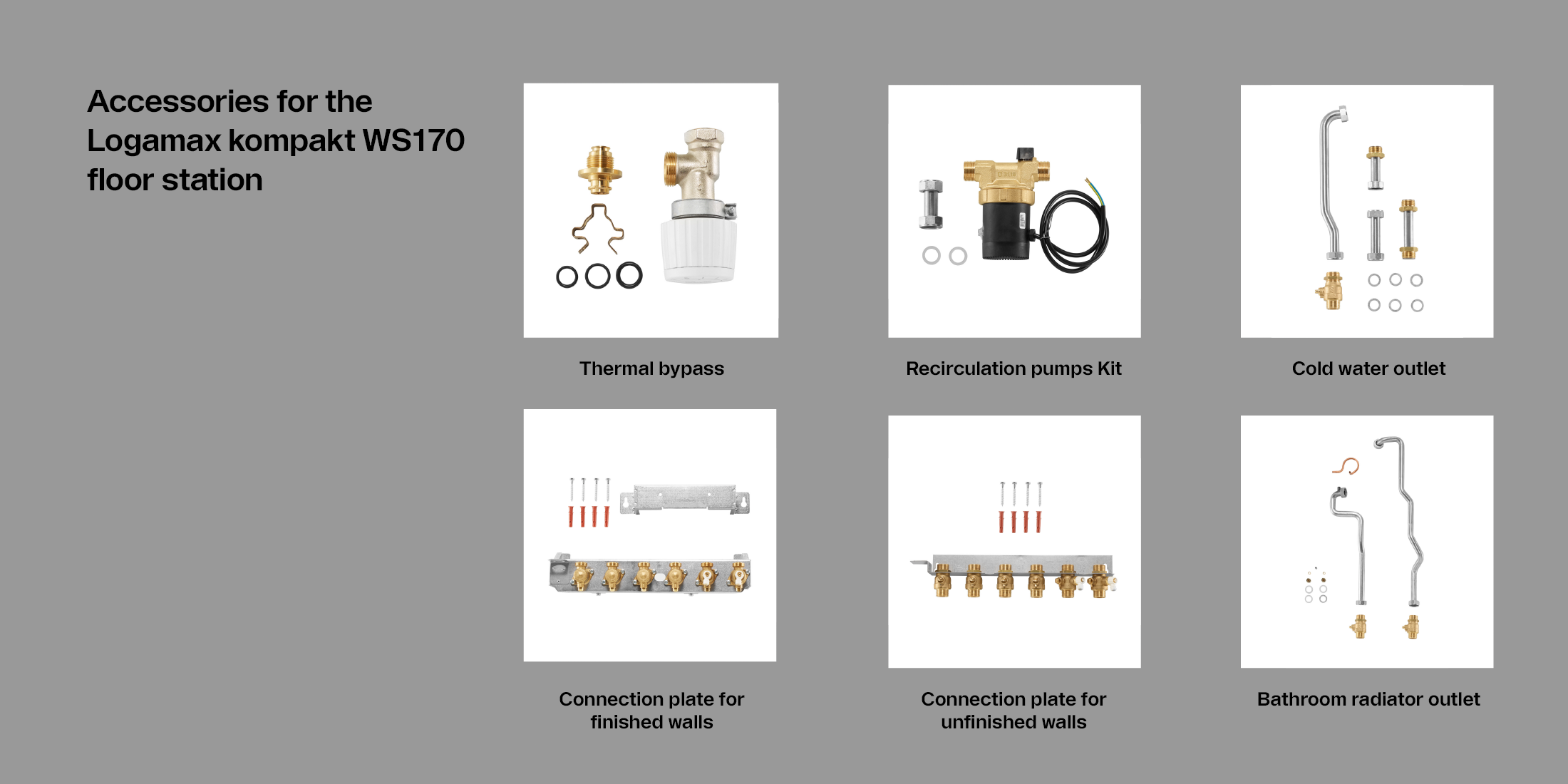

Accessories for the
Logamax kompakt WS170
floor station

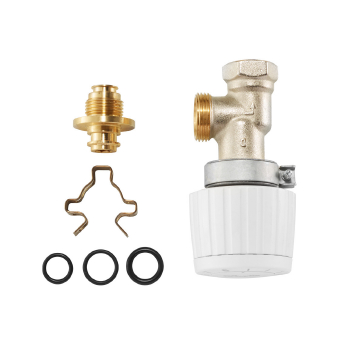

Thermal bypass

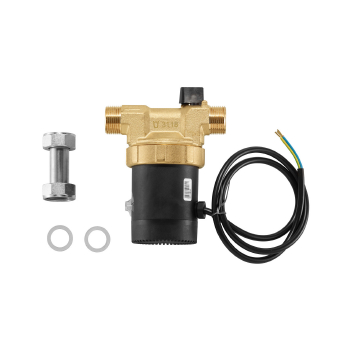

Recirculation pumps kit

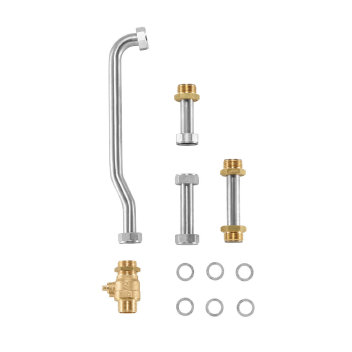

Cold water outlet

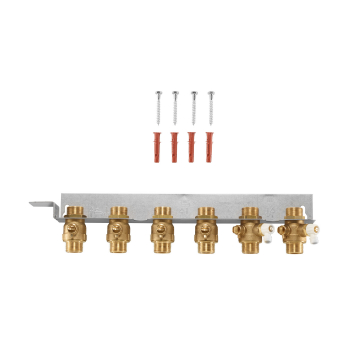

Connection plate for
finished walls

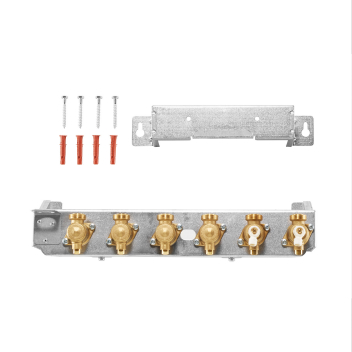

Connection plate for
unfinished walls

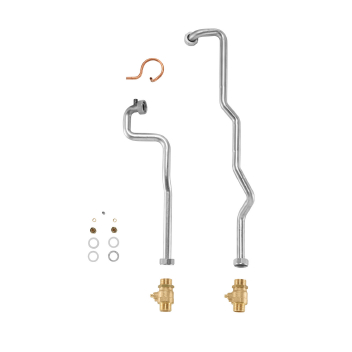

Bathroom radiator outlet

Layout

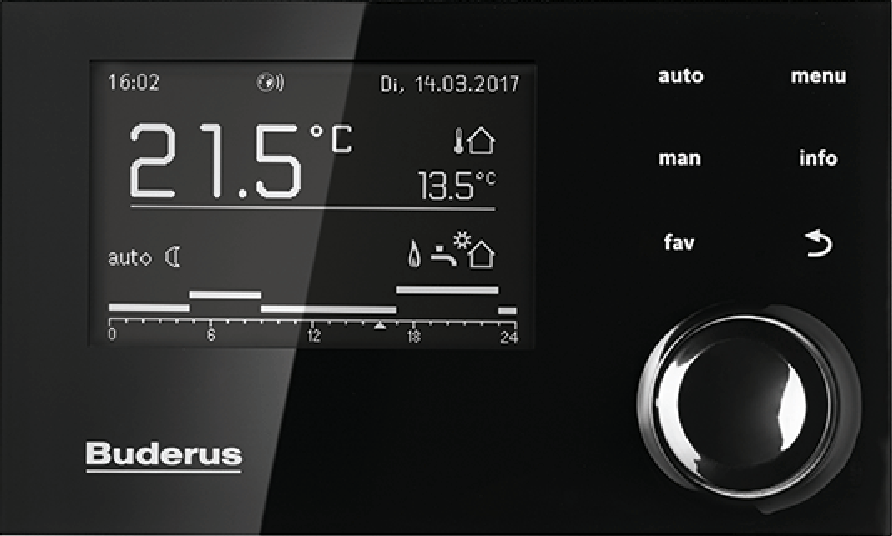

Logamatic EMS plus with Logamatic RC310 system programming unit

The EMS plus control system ensures customizable and speedy domestic hot water heating, e.g., with the controllable comfort function, in conjunction with the Logamatic RC310 system programming unit.

Electronic control valves.

The electronic control valves boost efficiency and convenience by quickly offsetting temperature and pressure fluctuations in the system.

Return temperature monitoring.

The efficiency of the entire system can be increased through a low return temperature. For this reason, the maximum return temperature can be set via the Logamatic RC310 system programming unit.

Optional installation of a thermal bypass valve.

The option of installing a thermal bypass valve improves domestic hot water convenience outside of the heating season.

Differential pressure valve installed at the factory for all versions.

For the hydraulic balancing of the primary circuit.

With a stainless steel brazed plate heat exchanger as standard.

For universal use in all regions.

Application

Application.

New build and modernization solution for finished walls.

decentralized supply of the individual apartments with domestic hot water and heating
the requirement to check for legionella is waived due to the instantaneous water heating principle used for domestic hot water without long circulation lines
operating costs for domestic hot water and heating can be accurately assigned to each individual apartment unit
