Overview: product.

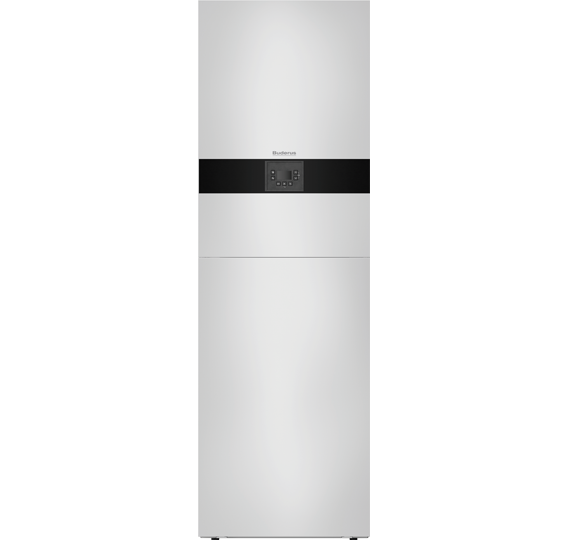

Logamax plus GB172iT gas condensing compact heating center

  • completely wireless connection thanks to wireless module
  • efficiency class A+ and high modulation range of down to 1 : 8 (heating); 1 : 10 (hot water)
  • intelligent mounting concept for quick and convenient installation

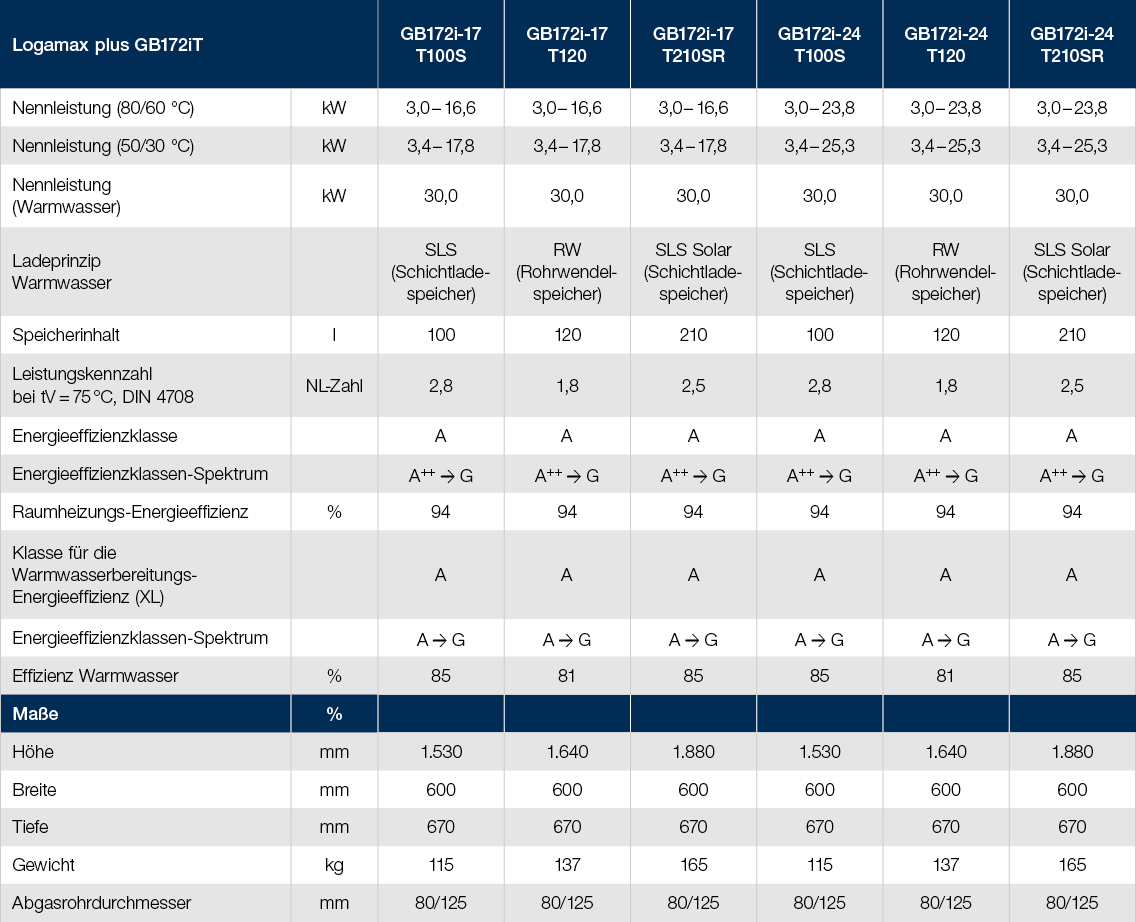

Technical Data

* The rating shows the energy efficiency of the Buderus system, comprising the Logamax plus GB172iT combined with the Logamatic RC310 system programming unit. The rating may vary depending on the components and output levels.
210 Liter

1531 mm

1638 mm

1880 mm

600 x 670 mm storage space

Overview: storage tanks.

Dual mode solar tank.

If a solar thermal system is part of the heating system, a dual mode stratification tank is used for solar DHW heating. This tank version is especially suitable for system solutions in new build.

Overview: control unit.

Logamatic RC310 system programming unit

  • ergonomic operation, mounted directly on the condensing boiler or installed in the living space
  • large, backlit graphic display
  • flexibility thanks to automatic presettings and manual adjustment option

The interface to the internet.

The Logamatic web KM200 gateway forms the internet interface of the condensing boiler and provides an uncomplicated connection to the router or internet via a LAN cable.

Overview: control unit.

Elegant touchscreen: Logamatic TC100

  • optimum individual room control with Ambient Light feature
  • smart functions such as presence detection, consumption indicator, proximity sensor
  • outside temperature capture using sensors or internet data

For smaller systems with one heating circuit and domestic hot water.

The MX200 works perfectly with the Logamatic TC100. The wireless module connects wirelessly to the control unit, which then sets up internet access via WLAN.

Delivery
Connection set
Gas condensing boiler
Components
Casing
System accessoires

Installation: delivery.

Piece by piece for more convenience.

The condensing boiler is supplied in separate parts for effortless handling – even in small boiler rooms. The tank can also be transported with ease using the recessed grips.

Installation: connection set.

Modular design for good accessibility.

The integral connecting plate provides for flexibility and ready access when installing the connection set. The pipework can be routed upwards or to the side as required. In the case of the latter, routing to either the right or left side is possible.

Installation: gas condensing boiler.

Try it and see: Just a few simple steps and you’re done.

The condensing boiler is lifted onto the tank using the ergonomically designed handles. It only needs to be slotted into place and secured with a spring pin. The connections are then tightened to complete the job.

Installation: components.

More capacity.

Various diaphragm expansion vessels (DEV) can be integrated depending on requirements. The compact heating center is equipped as standard with an integral 12 liter DEV. It is also possible to add a 17 liter DEV for heating.

Installation: casing.

Optimum accessibility.

The split appliance cover guarantees very good accessibility for both installation and maintenance. The cover can even be fitted and removed with the flue system installed.

Installation: system accessories.

Immediate connection.

The gas condensing boiler has an extensive range of matching accessories. For example, the magnetite and sludge separator can be directly combined with the connection set horizontal (CS10).

App MyBuderus
ConnectPRO
MyMode

Networking.

MyBuderus app

  • App for flexible control of the heating system
  • The most important heating parameters at a glance
  • Graphic illustration of energy consumption
  • Overview of thermal solar yield

Networking.

ConnectPRO web portal

  • online portal for flexible control of the heating system
  • display of all relevant data (e.g., consumption and temperature curve)
  • fault intelligence evaluates possible solutions to a problem

Networking.

MyMode app for the Logamatic TC100

  • all important information at a glance
  • individual adjustment options and savings potential
  • presence detection and energy consumption display
New build
Modernization

Application.

New build detached/two-family house.

In a new build, the solar version of the condensing boiler is intended for solar DHW heating. And because every square meter of floor area is important, the compact heating center is designed with space saving in mind.

Application.

Modernizing a detached/two-family house.

The Logamax plus GB172iT is also recommended for modernization projects thanks to its compact dimensions. This allows optimum use to be made of the boiler room.
