Overview: Product.

Controlled residential ventilation Logavent HRV176

  • Use in single family house with a power range of up to 450 m³/h
  • Flexible installation and fast and simple start‑up
  • System ventilation unit for combining with compatible heat pumps from Buderus, for example, for a standardised full‑system solution for new builds
The rating shows the energy efficiency of a specific product.
Ratings may differ for other products in the series.

Overview: Equipment.

Logavent HRV176 – fully prepared.

  • Enthalpy heat exchanger for moisture recovery built into Logavent HRV176‑260/450 E models ex works
  • Adaptive ventilation with built‑in moisture sensor and VOC sensor
  • Unit features pre‑heater bank for antifreeze protection and automatically regulated summer bypass as standard

Overview: Equipment.

Comfort and convenience – all year round.

  • Up to 90 % efficient heat recovery in winter
  • In summer nights, the automatically regulated bypass facilitates the direct use of cooler outdoor temperatures
  • Moisture recovery for optimum indoor climate with Logavent HRV176 E

Overview: Equipment.

Comfort from moisture recovery.

  • Moisture recovery in winter to prevent overly dry indoor air, and dehumidification in summer
  • Transfer of water molecules to the supply air via a heat exchanger featuring a special membrane
  • Moisture transfer removes need for condensate drainage

Overview: Equipment.

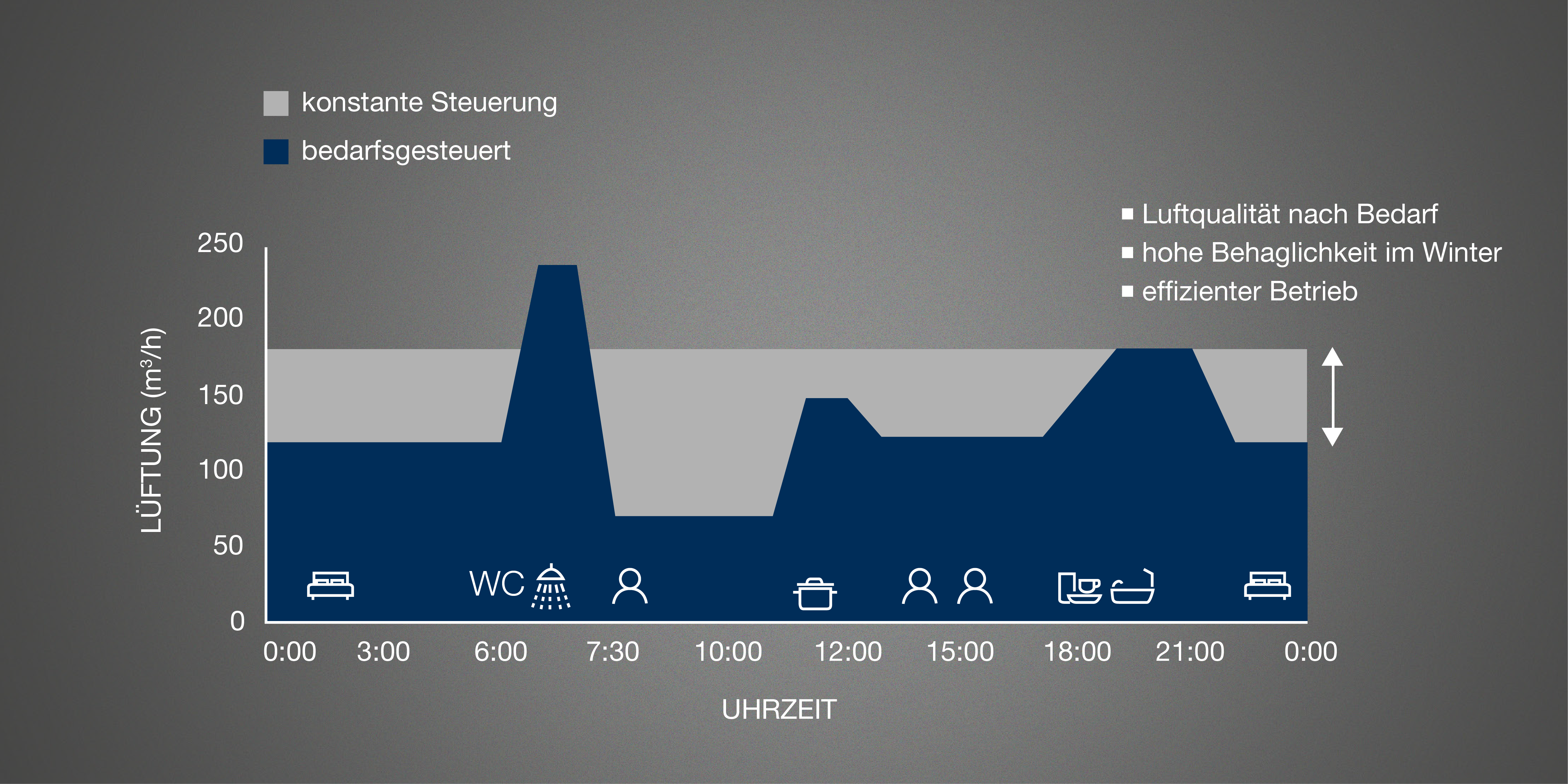

Benefits of sensors.

  • Pleasant air quality, adapted automatically according to demand
  • High comfort in winter in combination with moisture recovery
  • Significantly lower energy consumption (ErP A+) compared with constant control

Assembly: Fast and flexible.

Fresh air everywhere.

Versatile arrangement and flexible installation thanks to variable air connections:


  • Option to connect vertically or horizontally
  • Ingoing air and outgoing air can change sides
  • Wall‑hanging or floor-standing unit installation options

Assembly: Installation room.

Home sweet home – top, middle, bottom.

  • Variable and fast installation thanks to flexible air connections
  • Can also be installed in rooms with low ceiling height, e.g. attics
  • Compact, modular unit standardised full-system solution for new builds with control technology for combining with compatible heat pumps or hybrid systems from Buderus, for example

Assembly: Duct system.

The perfect accessory for fresh air.

  • Compact and compatible air distribution systems in different designs and dimensions
  • Flexible and space-saving assembly of air ducts as a flat duct or round duct
  • Antistatic and antibacterial interior coating on the air ducts for high standards of hygiene and indoor air quality

Control: Control concept.

Usage‑based control concept.

    • Intuitive and comfortable control of the ventilation unit via the Logamatic VC310
    • System control for heating, hot water and ventilation via the system control units:
      • Logamatic RC310/HMC310 for e.g. Logatherm WLW166i
      • Logamatic BC400 for e.g. Logatherm WSW196i/186i

  • Can also be operated on the move using the MyBuderus app

Control: MyBuderus app.

MyBuderus app

  • App for flexible control of the heating and ventilation system
  • The most important parameters at a glance
  • Graphic representation of the sensor values
  • Overview of the filter runtime with reminder function

Application: System solution.

System solution in new builds.

  • For combining with compatible heat pumps or hybrid systems
  • Compact, modular full-system solution for new builds
  • Standardised design and operation

Application: Single solution.

Standalone ventilation unit in new builds.

  • Standalone ventilation unit in new builds, e.g. for local heating with heat transfer stations
  • Low height and flexible air connections facilitate quick and variable installation (including in attics and rooms with low ceiling height)
  • High efficiency and comfort from sensor-operated demand control and moisture recovery
