Application: Market environment.

The heat pump hybrid system with gas condensing technology for modernisation.

large inventory of single-family and two-family houses with high heat demand (up to more than 200 kWh/m²*a)
heat generators that are more than 30 years old should be replaced (over one million heat generators on the market)
poor efficiency becomes evident as old systems are given energy consumption labels

Basic system

Expansion stage 1

Expansion stage 2

Expansion stage 3

Hydraulics 1

Hydraulics 2

System: Basic system.

Heat pump hybrid system with gas condensing technology.

The benefits of the heat pump technology and condensing technology are brought together to form an efficient and eco-friendly hybrid system:

The combination of a WLW MB A H heat pump outdoor unit and a gas condensing heating appliance, such as the Logano plus KB192i or the Logamax plus GB192i, reduces power consumption and costs and protects the climate. Everything from a single source with state-of-the-art technology in an advanced design.

System: Basic system.

WLW MB A H air to water heat pump outdoor unit

a new dimension: Quiet operation thanks to SILENT plus technology
future-proof R290 refrigerant with a very low global warming potential (GWP) of 3*
high flexibility on location, including on very small plots

* Global warming potential based on IPCC AR4.

System: Basic system.

Logano plus KB192i floor-standing gas-condensing boiler

perfect replacement boiler for modernisation in the Titanium line design
optimal energy utilisation thanks to modulating burner operation, modulation range of up to 1 : 10
10-year warranty on heat exchangers
with the Logamatic BC400 system control unit
H₂-ready for use with hydrogen blends of up to 20 %
internet-ready thanks to the MX300 wireless module and can be controlled using the MyBuderus app
suitable for liquid gas

System: Basic system.

Logamax plus GB192i wall-mounted gas condensing boiler

casing with high-quality Titanium design at front
consistently high efficiency thanks to ALU plus technology of the heat exchanger
fitted with a robust, highly efficient pump
with the Logamatic BC400 system control unit0
H₂-ready for use with hydrogen blends of up to 20 %
10-year warranty on heat exchangers
internet-ready thanks to the MX300 wireless module

"H₂-ready" DVGW certificate:

certification for the reliable use of wall mounted gas condensing boilers with natural gas containing up to 20 vol% hyrogen
to achieve climate-neutrality
monitored by the DVGW (German Technical and Scientific Association for Gas and Water

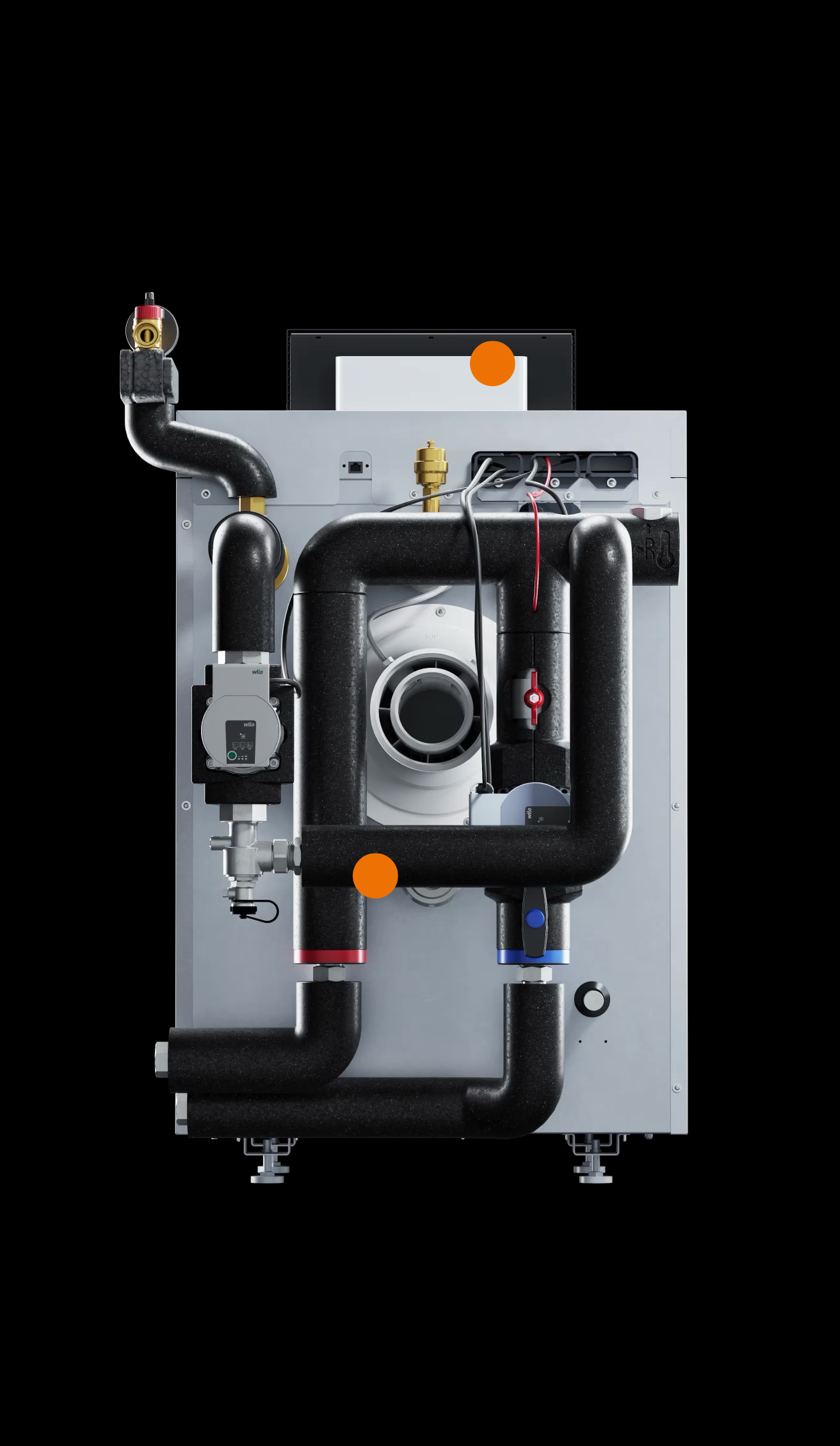

Hydraulic assembly.

The preassembled hybrid assembly, together with the hybrid manager, forms the link between the condensing system and the heat pump outdoor unit. The modular concept means that the heat pump indoor unit can be omitted. This means that no additional space is required for modernisation.

Hybrid manager.

intelligent operating concept with various control technologies, such as cost-optimised and CO₂-optimised operation
preassembled sensors and user-friendly installation in the control cover, as for a Logamatic EMS module
hassle-free operation and commissioning using the Logamatic BC400 system control unit

System: Basic system.

Hybrid box HW-Set HYC25

simple integration of a heat pump outdoor unit into a condensing system with Logamax plus GB192i / GB182i / GB172i
HM200 hybrid manager with intelligent operating concept for various control technologies, such as cost-optimised and CO₂-optimised operation
retrofitting is subsidised
quick assembly thanks to pre-assembled components

System: Basic system.

Logaflow HB120 hydraulics box

system accessories in the form of a compact pre-assembled unit
can be combined with a wide range of heating systems
ideal for new buildings and modernisations
for heating systems up to 25 kW
pre-assembled functional system accessories for more planning reliability
great time savings for planning and installation

All in one housing:

air separator
magnetite/air separator
refill combination
full demineralisation
35 litre heating expansion vessel
8 litre potable water expansion

System: Expansion stage 1.

SRC plus single room control

heat production and distribution in individual rooms
integrated into a control system for the first time
for a heat pump with an underfloor heating system or a wall-mounted gas condensing boiler with radiators
commissioning via the ProWork app, operation via the MyBuderus app

System: Expansion stage 1.

System optimisation of panel and bathroom radiator.

System advantage:

Modern radiators not only look good – thanks to efficiency-enhancing engineering, they also decrease heating costs and simultaneously increase heating comfort. The SRC plus individual room control system integrated into the control system increases the energy efficiency of the entire system to A+. The individual room control system is an effective and cost-effective option to save energy while maintaining full comfort.

Battery storage system:

flexible, expandable capacity (5,1-22,1 kWh net)
lithium-iron-phosphate cells with ceramic separators
high storage capacity in a small space

Hybrid inverter:

output power of 3‑10 kW, three‑phase
two MPP trackers as standard
with basic emergency power supply of up to 3 kW as standard
can be expanded to include the "Full Backup" emergency power variant

System: Expansion stage 2.

Buderus Wallbox WLS11i

highest-quality wall box in a modern design for all Type 2 electric and hybrid cars
can be mounted in outdoor areas or in garages
vehicle electricity meter ensures that energy costs are reduced with a cheaper electricity tariff
available with either a 230 V or 400 V connection and charging capacity of up to 11 kW
myBuderus app provides a good overview and is simple to control
energy can be managed sustainably with a photovoltaic system, the Buderus Energy Manager and the MyEnergyMaster app

System: Expansion stage 2.

Photovoltaic system.

System advantage:

The current generated by the photovoltaic system supplies the heat pump system and the electrical and electronic equipment in the house. By adding a battery storage system, the proportion of private consumption increases and the self-generated electricity is then still available when the sun is not shining.

System: Expansion stage 3.

Decentralised residential ventilation: Logavent HRV136 D

quick retrofitting as part of energy-oriented modernisation for a cosy indoor climate with increased efficiency
adaptive control with humidity sensor
compact design with high air performance (55 m³/h per pair) and very low noise level thanks to a special inner hood
flexible, since no paired operation is necessary

System: Expansion stage 3.

Decentralised residential ventilation.

System advantage:

Decentralised residential ventilation ensures optimal ambient air quality. The air change-over is automatically controlled by a moisture measurement sensor integrated at the factory. This ensures energy efficient heating and simultaneous ventilation.

Gas-fired floor-standing condensing boiler Logano plus KB192i

perfect replacement boiler for modernisation in the Titanium line design
optimal energy utilisation thanks to modulating burner operation, modulation range of up to 1:10
10-year warranty on heat exchangers
with the Logamatic BC400 system control unit
H₂-ready for use with hydrogen blends of up to 20 %
internet-ready thanks to the MX300 wireless module and can be controlled using the MyBuderus app
suitable for liquid gas

MyBuderus app

ConnectPRO web portal

MX300

Connectivity.

MX300 wireless module

Wi-Fi communication (2.4 GHz), radio remote control (868 MHz) and with the SRC plus single room control
Plug & Play: Straightforward commissioning for end customers thanks to slot directly accessible on the heat generator
in order to use the MyBuderus app, the Logamatic RC120 RF radio remote control and the SRC plus single room control system are required
required to use the Buderus ConnectPRO web portal for professional customers

Apps

Hydraulics database

Planning and installation aids

Customer service

Warranties

Subsidy

Service.

ProWork app

you can use the ProWork app and Smart Service Key to take full advantage of your potential
no Internet connection is required for use on site
in conjunction with the Smart Service Key, you can take full control of commissioning the heating system using the ProWork app
a service report can be generated with the data read out, and locally saved on the mobile device or sent elsewhere

Service.

ProDelivery app

transparent Germany-wide shipment tracking of Buderus deliveries and returns
information on the delivery status directly in the app without having to contact the branch by phone
considerable time savings, flexible and convenient operation due to clear layout
large number of additional functions such as delivery history, PDF download of delivery notes and parking approval

Your benefits from having maintenance performed by the Buderus industrial service:

professional: Our service engineers regularly inspect, clean and replace spare and wearing parts
safe operation: Heating systems that we have serviced are reliable and have a low risk of failure
cost-effective: We ensure that your system operates efficiently over its service life – for up to 10 % lower energy costs

Service.

Warranties.

Five-year system warranty:

valid with the Buderus warranty certificate from the professional heating partner
includes costs for material and working time for five years from the date of installation by the heating contractor
simple registration with the online form or via the freeof-charge hotline for system warranties

Service.

Warranties.

10-year warranty on heat exchangers:

long service life that has been tried and tested millions of times over
10-year warranty from installation/commissioning
applies to the following product lines*
Logamax plus GB162 (up to 45 kW) / GB192i / GB192iT / GB272
Logano plus GB212
Logano plus KB192i / KB195i
Logano plus KB372

* Logano plus KB195i, Logano plus KB192i and Logano plus GB212 installed after 31st January 2021, Logano plus KB372 installed after 31st August 2020. You can find additional information about the warranties and the full terms and conditions at www.buderus.de/de/5-jahre-systemgarantie

Service.

The BEG subsidy programme.

The BEG (German federal government subsidies for efficient buildings) is replacing the existing programmes from the Credit Institute for Reconstruction (KfW) and the Federal Office of Economics and Export Control (BAFA). Proven elements have been developed further and bundled into three sub-programmes in order to make the funding programmes more comprehensible for citizens, companies and municipalities.

Service.

With febis for optimum funding for modernisation.

customers interested in modernisation of an individual measure with a renewable heating system receive straightforward advice from the subsidy professionals at febis
online service based on checklist and heating system quote
our own online information at www.buderus.de/foerderservice-ek and funding hotline on +49 (0) 6190 9263 492*

* The funding hotline employees are available to you Monday to Friday between 9 a.m. and 5 p.m.

The febis funding service for trade customers.

web-based funding service application especially for contractors
reduced work and research effort
customer acquisition and retention through a range of services in a multi-stage process
information service: www.fachkunden.buderus.de/fachkunden-foerderservice and funding hotline on +49 (0) 6190 9263 431
