Application: Market environment.

The heat pump system for new single-family houses.

  • demand for more energy efficiency, convenience and use of self-generated electricity
  • sustainable and future-proof design

Application: Object.

The heat pump system for new single-family houses.

Single-family or two-family new builds.

In light of legal frameworks such as the German Buildings Energy Act (GEG) and the defined house efficiency standards, heating and ventilation systems play a vital role in new builds. While demand for a comfortable indoor climate grows, so too does the demand for self-generated electricity and environmentally friendly, future-proof systems.

Application: Requirement.

The heat pump system for new single-family houses.

Requirements:

  • high energy efficiency with a space-saving design
  • system solutions with an ideal price-performance ratio and low operating costs
  • comfort and convenience for heating and cooling
  • flexibility and simplicity in planning and installation

System: Basissystem.

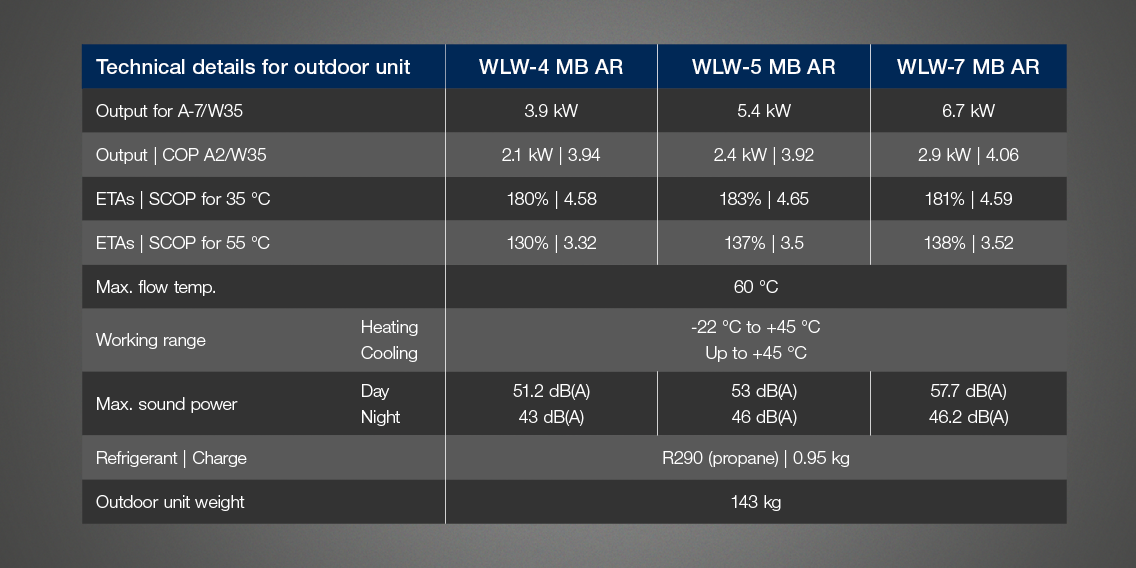

Logatherm WLW176i AR T180 air to water heat pump

  • available in output sizes of 4 kW, 5 kW, 7 kW, 10 kW and 12 kW
  • quiet operation of the compact outdoor unit thanks to next-level SILENT plus technology
  • space-saving design thanks to integration of all system components in the indoor unit
  • future-proof and environmentally-friendly R290 refrigerant with a global warming potential (GWP) of 3*
* Global warming potential based on IPCC AR4.

System: Basic system.

Logatherm WLW176i AR T180 air to water heat pump

Equipped as standard with:

  1. 180 l DHW cylinder
  2. 16 l buffer cylinder
  3. built-in expansion vessel
  4. heating/domestic hot water diverter valve
  5. primary circuit and heating circuit pump
  6. MX300 wireless module (built-in)

System: Basic system.

The next level: SILENT plus technology.

  • simulation-based and fine-tuned design
  • built-in sound diffuser and psychoacoustic optimisation with concealed fan
  • double vibration-separated refrigeration circuit in sound-insulated refrigeration circuit box
  • smart control in optimal frequency range

System: Basic system.

Logamatic BC400 system control unit

  • intuitive touch operation with illuminated 5 inch full-colour display built into the device
  • straightforward operation, for example thanks to graphical system overview/schedules and selection, simplified view and expert view
  • can also be operated by smartphone using the MyBuderus app
  • new Logamatic RC220 system remote control, Logamatic RC120 RF radio remote control and SRC plus single room control system
  • internet-ready thanks to MX300 wireless module

MX300 wireless module

  • Plug & Play: Straightforward commissioning for end customers thanks to slot directly accessible on the appliance
  • in order to use the MyBuderus app, the Logamatic RC120 RF radio remote control and the SRC plus single room control system are required
  • required to use the Buderus ConnectPro web portal for trade customers
  • Wi-Fi communication (2.4 GHz), radio remote control (868 MHz) and with the SRC plus single room control system

System: Basic system.

The space-saving system solution.

The remarkably quiet outdoor unit can be optimally added to any environment thanks to its compact, modern design. There is also room for the indoor units even in the smallest of installation rooms. All of the heating system components are integrated on just 0.4 m².

System

Expansion stage 1:
Heat recovery ventilation.

System: Expansion stage 1.

Controlled residential ventilation Logavent HRV176

  • for single family houses with a power range of up to 450 m3
  • system ventilation unit for combining with compatible heat pumps from Buderus, for example, for a standardised full-system solution for new builds
  • can be controlled from the MyBuderus app

The perfect accessory for fresh air.

  • compact and compatible air distribution systems in different designs and output sizes
  • flexible and space-saving assembly of air ducts as a flat duct, floor structure or round duct
  • very high standard of hygiene and indoor air quality

System: Expansion stage 1.

Controlled residential ventilation Logavent HRV176

System advantage:

In new builds in particular, having the right residential ventilation is very important. The Logavent HRV176 pairs perfectly with a Logatherm WLW176i AR heat pump to create a standardised full-system solution for new builds. This is because it is extremely sustainable and efficient: Up to 90 % of the heat is recovered from the used air. As such, it produces a healthy indoor climate and high quality of living with lower heat output and lower energy costs.

System

Expansion stage 2:
Photovoltaic system.

System: Expansion stage 2.

Photovoltaic module.

  • glass/glass or glass/film from 400 Wp output
  • 25-year product guarantee and 30-year performance guarantee (glass/glass)
  • optionally with black or aluminium-coloured frame

System: Expansion stage 2.

MyEnergyMaster app

  • more independence with up to 70 % self-generated supply
  • efficient connectivity of photovoltaics, heat pump, wall box and household appliances
  • compatible with any photovoltaic system
  • optimal overview of the energy draw

Battery storage system:

  • flexible, expandable capacity (5.1‑22.1 kWh net)
  • lithium-iron-phosphate cells with ceramic separators
  • high storage capacity in a small space

Hybrid inverter:

  • output of 3–10 kW, three-phase
  • 2 MPP trackers as standard
  • with basic emergency power supply of up to 3 kW as standard
  • can be expanded to include the "Full Backup" emergency power variant

Bosch Power Meter 7000i and Power Sensor 7000

  • enable a heat pump to be integrated into a photovoltaic system without any further intervention
  • measure the current flows and communicate this to the Buderus Energy Manager to control the heat pump with precise Watt values
  • increased use of self-generated electricity and lower electricity costs
  • possible to monitor multiple inverters and AC-coupled battery storage system
  • can also be commissioned by the Buderus Service if requested

System: Expansion stage 2.

Buderus Wallbox WLS11i

  • highest-quality wall box in a modern design for all Type 2 electric and hybrid cars
  • can be mounted in outdoor areas or in garages
  • vehicle electricity meter ensures that energy costs are reduced with a cheaper electricity tariff
  • available with either a 230 V or 400 V connection and charging capacity of up to 11 kW
  • MyBuderus app provides a good overview and is simple to control
  • energy can be managed sustainably with a photovoltaic system, the Buderus Energy Manager and the MyEnergyMaster app

System: Expansion stage 2.

Photovoltaic system.

System advantage:

The current generated by the photovoltaic system supplies the heat pump system and the electrical and electronic equipment in the house. Adding another battery storage system increases the proportion of own consumption and the current generated by the system itself is available irrespective of the solar irradiation. Commissioning the photovoltaic system and integrating the heat pump system couldn't be simpler thanks to the intuitive Buderus app, MyEnergyMaster.

System

Expansion stage 3:
System optimisation.

System: Expansion stage 3.

SRC plus single room control system

  • heat production and distribution in individual rooms
  • integrated into a control system for the first time
  • saves up to 25 % heat pump power
  • adaptive heating curve: Maximum energy savings by reducing the average operating temperature
  • for heat pump with underfloor heating system or condensing boiler with radiators
  • commissioning via the ProWork app, operation via the MyBuderus app

System: Expansion stage 3.

Logafloor underfloor heating tacker system.

  • ideal for heating and cooling in combination with a heat pump
  • efficient operation due to low operating temperatures
  • high level of comfort thanks to optimum heat distribution

System: Expansion stage 3.

Cutting-edge heating with infrared heaters.

  • efficient, electrical heater
  • fast and flexible provision of heat
  • infrared rays heat bodies and materials directly; this means:
    • no dust is stirred up
    • a pleasant comfort level is produced
    • radiation feels warmer and more comfortable to us
  • sustainable solution in combination with photovoltaic system and heat pump

System: Expansion stage 3.

Logatrend IFR186/286/386 KB

  • ceramic variant
  • ideal addition to the existing heating system as a bathroom radiator
  • resistant to higher temperatures, cleaning agents, temperature shocks, UV rays and humidity
  • special production process, uniform surface, scratch-resistant, no wear from friction
  • simple to clean and maintain
  • output 400 W, 600 W, 800 W

System: Expansion stage 3.

Logatrend IFR RC control

  • corded
  • touchscreen display
  • display of current and required room temperature
  • operating program or can be adjusted as required
  • anti-icing system, holiday function, open window detection
  • keypad lock

Connectivity.

MyBuderus app

  • app for flexible control of the heating and ventilation system
  • all important parameters at a glance
  • graphic illustration of energy consumption
  • indicates the current state of the wall box

Connectivity.

ConnectPRO web portal

  • direct connectivity with keys with the customer system
  • fast fault detection and rectification
  • forward-looking scheduling and workforce planning
  • DIAGNOSTIC plus: Overview of all important system data

Connectivity.

MyEnergyMaster app

  • more independence with up to 70 % self-generated supply
  • efficient connectivity of photovoltaics, heat pump, wall box and household appliances
  • compatible with any photovoltaic system
  • optimal overview of the energy draw

Service.

Logatherm scheduling tool.

  • choice of new build and renovation, as well as energy source and installation type, and expert mode
  • calculation of the power required above heating load as per DIN 12831, KfW standard, building year or energy consumption
  • outputs complete system solutions

Service.

Logafloor scheduling tool.

  • optimised quick configuration of Logafloor underfloor heating system thanks to pre-settings
  • access from anywhere, using web browser, smartphone or tablet
  • intelligent material selection for quote calculation
  • does not replace heat load calculation

Service.

Logavent scheduling tool.

  • quickly configures and reliably calculates heat recovery ventilation system
  • just a few clicks are needed to display a comprehensive overview of materials and costs, incl. quick configuration and expert mode for customised configuration
  • free online tool for PC and tablet

Service.

ProDelivery app

  • transparent Germany-wide shipment tracking of Buderus deliveries and returns
  • information on the delivery status directly in the app without having to contact the branch by phone
  • considerable time savings, flexible and convenient operation due to clear layout
  • large number of additional functions such as delivery history, PDF download of delivery notes and parking approval

Service.

24/7 customer service.

  • support with commissioning, maintenance, repairs, water analysis and efficiency service
  • over 300 service engineers across Germany at your service every day
  • over 220 service products: Can be combined and are available across Germany

Service.

Smart Service Key

  • service tool with the ProWork app for mobile use for heat generators with the EMS plus control system
  • Wi-Fi connection between the service tool and smartphone
  • support during on-site service deployments

Service.

Climate protection is worth it.

Renewable heating systems and efficient buildings are being promoted as part of the climate package. This includes heat pumps, pellet stoves and solar thermal systems. Benefit from state subsidies and let us advise you.

Our free advice hotline:

0800 0 2030 00

Monday–Friday, 7 a.m. to 7 p.m
www.buderus.de/beg
